Bulk material handling
Our bulk material handling assemblies comprise filling and emptying applications, amongst others. We are also happy to provide logistics solutions. We can also find the right solution for your product. Please contact us!
Typical applications
Filling
Stackable sack feeding container
Made of aluminium with a steel base frame. Lateral support fixture for two suction lances.
Container/octabin filling station
With a pneumatic telescope for filling
Transfer station
From Big Bag goods into octabin or day containers via a trough screw conveyor

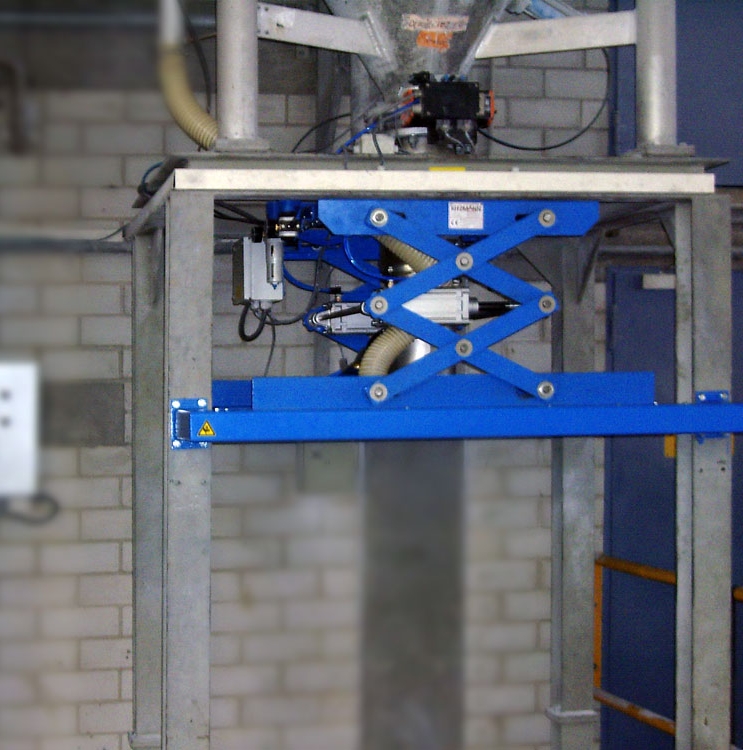

Container/octabin filling station
With a pneumatic scissors telescope for dust-tight filling with an integrated maximum signal
Big Bag filling station
With a pneumatic blowing collar for low-dust Big Bag handling. Surge air return in the premixing container with an integrated full signal.
Silo vehicle filling
Using triplex conveying units Kl100. Capacity up to approx. 33 t/h at an apparent density of 0.65 kg/dm³.
Octabin filling station
With a pneumatically actuated filling telescope and an intermediate sifting machine.
Container filling telescope
With a rope guide and integrated maximum signal
Sack discharge station
With integrated small component scales, a sack support and discharge shaft in an empty sack compactor for free disposal
Manual feeding station
For very small components incl. monitoring
Discharge

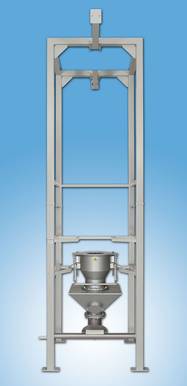

Big Bag discharge station with one-hand operation
and dust-tight Big Bag docking
Big Bag discharge station with one-hand operation
with dust-tight Big Bag docking. Handled by an electric chain hoist. A spiral screw conveyor KI80 carries out the discharge process
Big Bag loading
In a mechanical spiral screw conveyor KI80
Big Bag discharge station
With screw conveyor dosing for EX-Zone 22
Big Bag discharge support
Using a pneumatic kneading unit for products with poor flow properties
Big Bag discharge station
With a sack feeding station

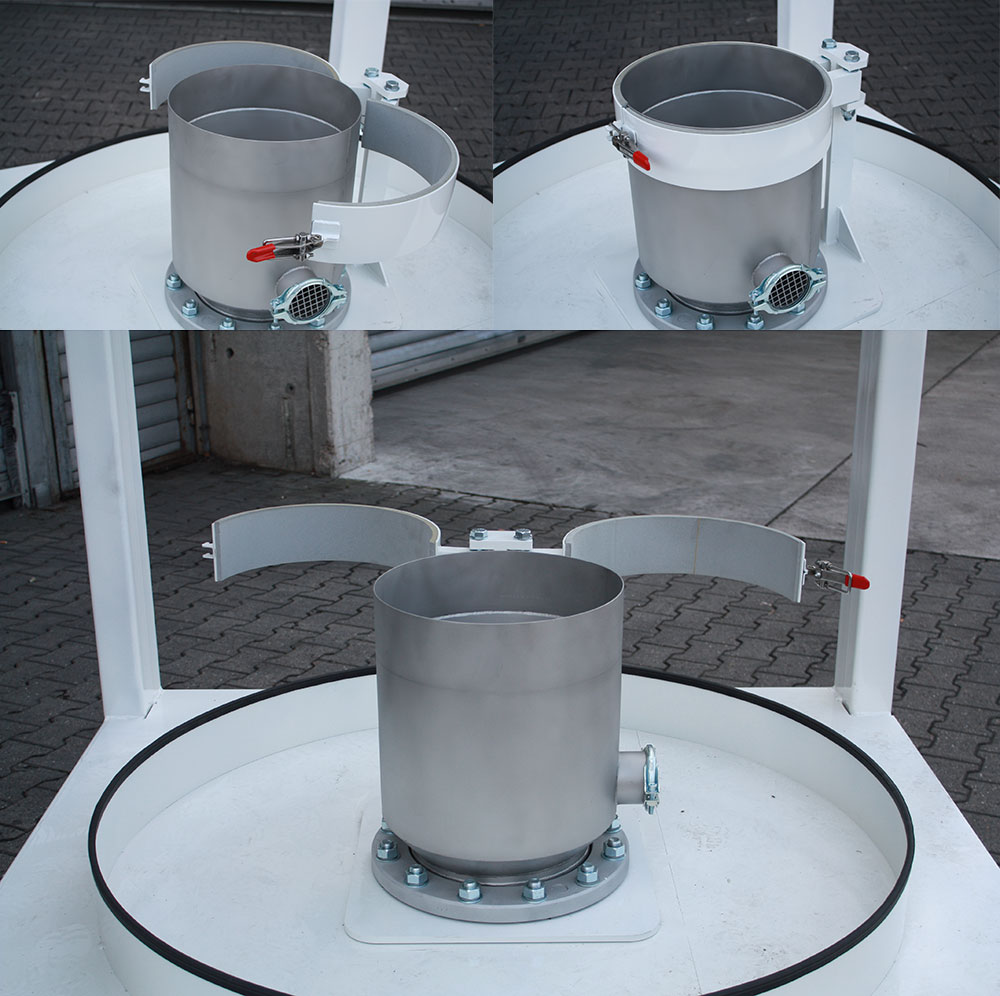

Big Bag clamping device
Manually operated
Big Bag discharge station
With a sprung floor

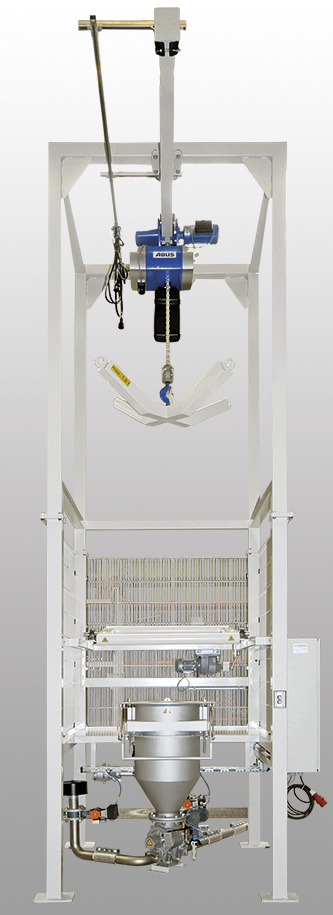

Big Bag discharge station
With a suction draining function
Big Bag discharge station
For EX-Zone 22 with an aspiration filter
Big Bag discharge station
For 1 component with a discharge aid for poorly flowing products
Glove box
Handling of toxic substances
Powder separator
Powder separator KIS30 vario EX
Powder separator KIS30 vario
